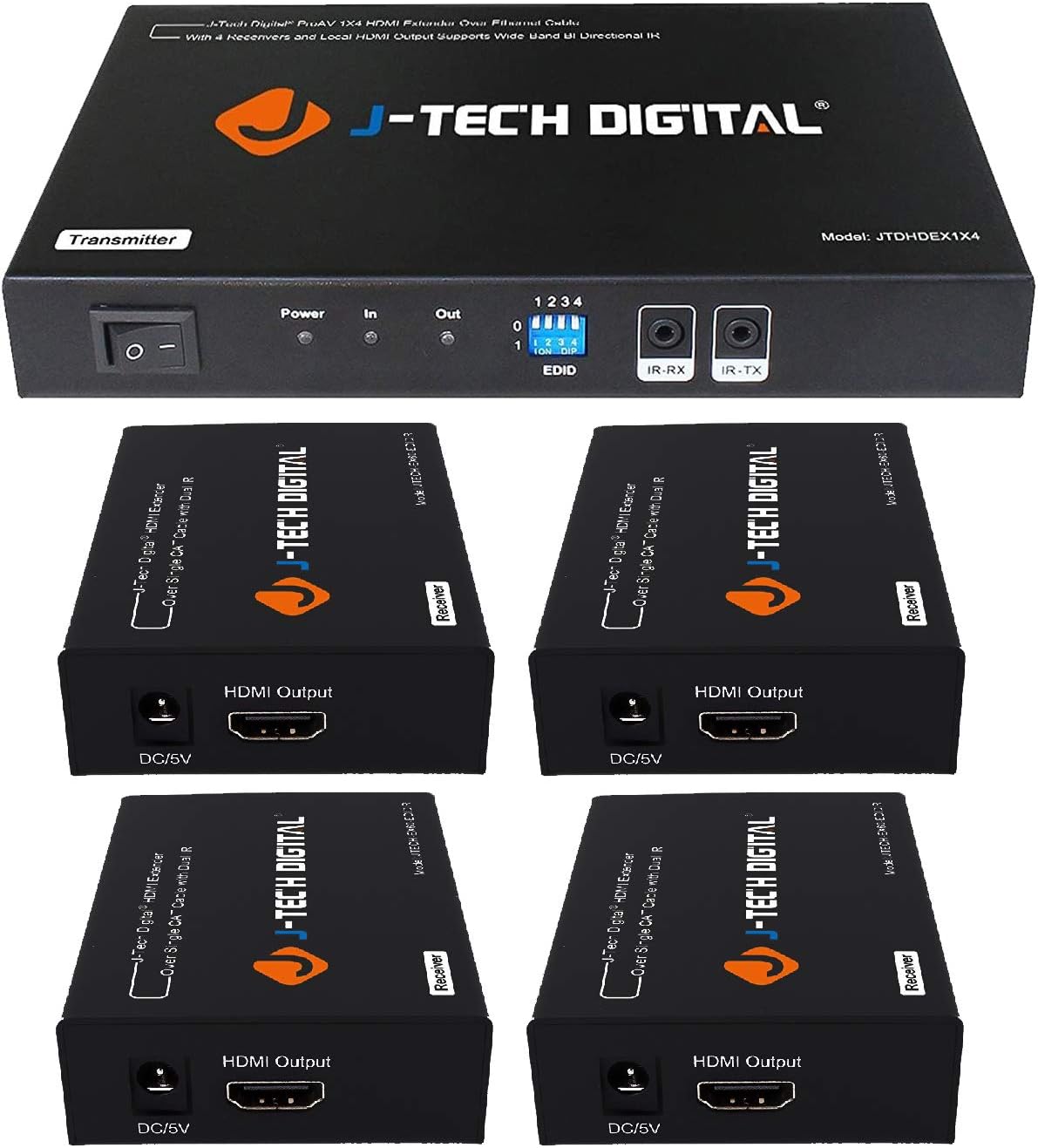

1x4 HDMI Extender Splitter Over Cat5e/Cat6 up to 164 feet at 1080P with IR Control W526847
Sale price
$23.99
Regular price $84.36
Skip to product information
EXTEND AND DISTRIBUTE 1 HDMI SOURCE TO 4 HDMI DISPLAYS – Send a video signal from an HDMI source, such as a Blu-ray player, PS4/Xbox One, or cable box to 4 HDMI displays simultaneously, up to 164 feet (50 meters) away.
LOCAL HDMI OUTPUT – Split your signal directly from the location of your source using the local HDMI loop out port on the Transmitter unit, allowing you to connect a 5th display for monitoring purposes with this system.
HD AUDIO FORMATS SUPPORTED AND BUILT-IN EDID SETTINGS – Experience High Definition Digital Audio with the following supported formats: Dolby TrueHD, DTS-HD Master Audio. Also configure your audio and video settings accordingly with the EDID dip switch settings.
BI-DIRECTIONAL IR – Control your source device at the location of your display or control your display from the location of your source device with the 2-way IR functionality of this product for maximum convenience.
FREE LIFETIME SUPPORT – All J-Tech Digital Products include a One-Year Manufacturer Warranty and free lifetime technical support from our Customer Support Team located in Houston, Texas - Available M-F 9AM-6PM CST - Contact information available on the J-Tech Digital Seller Page.
1x4 HDMI Extender Splitter Over Cat5e/Cat6 up to 164 feet at 1080P with IR Control W526847
Sale price
$23.99
Regular price $84.36
Shipping calculated at checkout.
EXTEND AND DISTRIBUTE 1 HDMI SOURCE TO 4 HDMI DISPLAYS – Send a video signal from an HDMI source, such as a Blu-ray player, PS4/Xbox One, or cable box to 4 HDMI displays simultaneously, up to 164 feet (50 meters) away.
LOCAL HDMI OUTPUT – Split your signal directly from the location of your source using the local HDMI loop out port on the Transmitter unit, allowing you to connect a 5th display for monitoring purposes with this system.
HD AUDIO FORMATS SUPPORTED AND BUILT-IN EDID SETTINGS – Experience High Definition Digital Audio with the following supported formats: Dolby TrueHD, DTS-HD Master Audio. Also configure your audio and video settings accordingly with the EDID dip switch settings.
BI-DIRECTIONAL IR – Control your source device at the location of your display or control your display from the location of your source device with the 2-way IR functionality of this product for maximum convenience.
FREE LIFETIME SUPPORT – All J-Tech Digital Products include a One-Year Manufacturer Warranty and free lifetime technical support from our Customer Support Team located in Houston, Texas - Available M-F 9AM-6PM CST - Contact information available on the J-Tech Digital Seller Page.

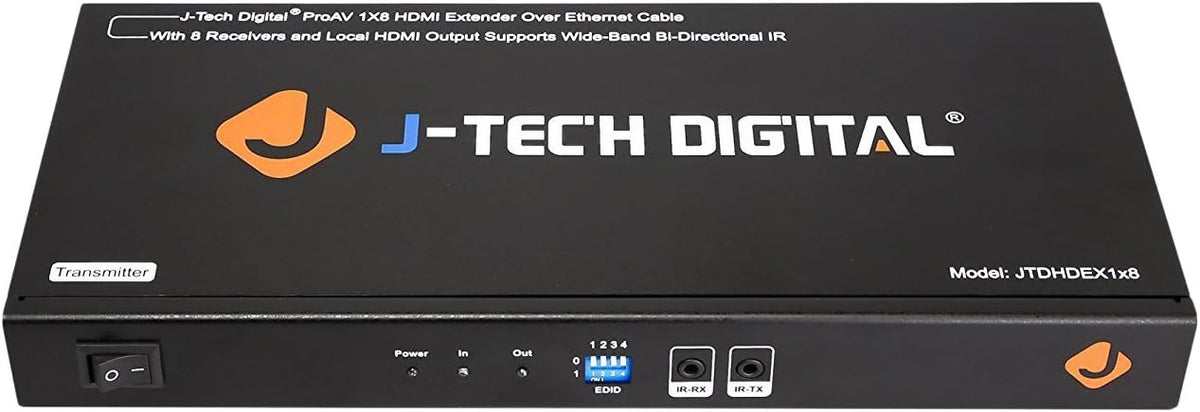

| JTDHDEX1x4 | JTECH-14EX50 | JTDHDEX1x8 | JTECH-18EX50 | |
|---|---|---|---|---|
| Max Resolution | 1080P 60Hz | 4K 60Hz 4:4:4 | 1080P 60Hz | 4K 60Hz 4:4:4 |
| Max Distance | 164ft | 196ft 1080P | 114ft 4K | 164ft | 196ft 1080P | 114ft 4K |
| # of Inputs | 1 | 1 | 1 | 1 |
| # of Outputs | 4 | 4 | 8 | 8 |
| Local HDMI Loop Output | Yes | Yes | Yes | Yes |
| HDMI Version | 1.4 | 2.0 | 1.4 | 2.0 |
| HDCP Version | 1.4 | 2.2 | 1.4 | 2.2 |
| PoC Capability | No | Yes | No | Yes |
| IR Passthrough | Yes (Bi-directional) | Yes | Yes (Bi-directional) | Yes |
| EDID Management | Yes | Yes | Yes | Yes |
